LED Oval Bathroom Mirror With Light
DP518
Product Parameters
- Product Size
- 50 × 80 cm ｜ 45 × 90 cm ｜ 60 × 90 cm ,Customization
- Led Lights
- Standard 2835 / UL-listed dual-color strip• 120 LEDs/m (60 white + 60 warm white)• 6 W per meter
- Mirror Type
- 4 mm eco-friendly silver mirror, straight-edge polished; no sand-blasting
- Switch
- Touch sensor switch, dimmable brightness
PC-Series LED Oval Bathroom Mirror
JYD Mirror—a wholesale manufacturer / supplier / factory of high-end LED bathroom mirrors—presents this oval backlit model engineered for residential ensuites, hotel suites, premium apartments & commercial restrooms. Every unit blends eco-friendly materials with professional-grade lighting to elevate daily grooming rituals.
🔑 Key Features & Benefits

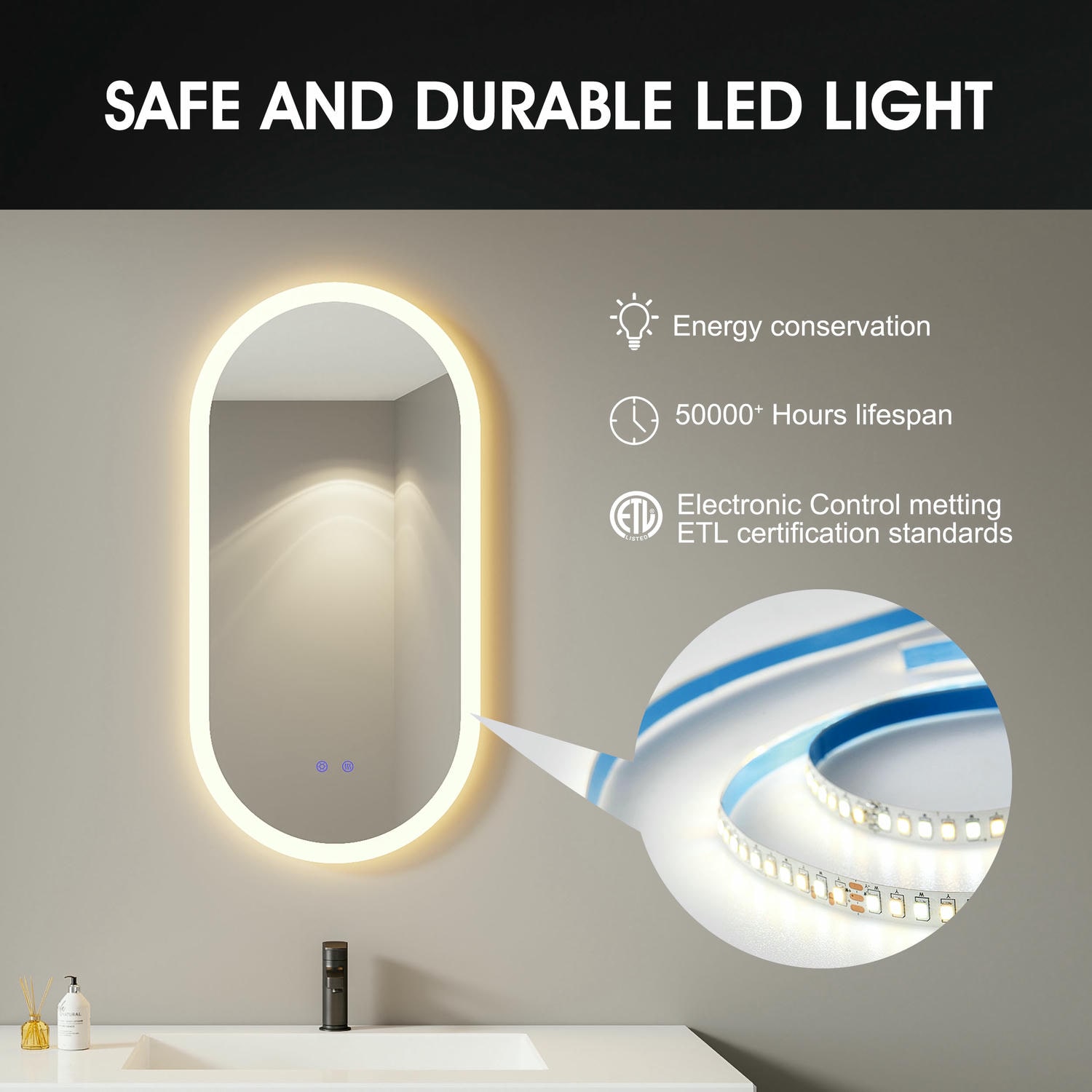

- Professional Dual-Color LED Strip

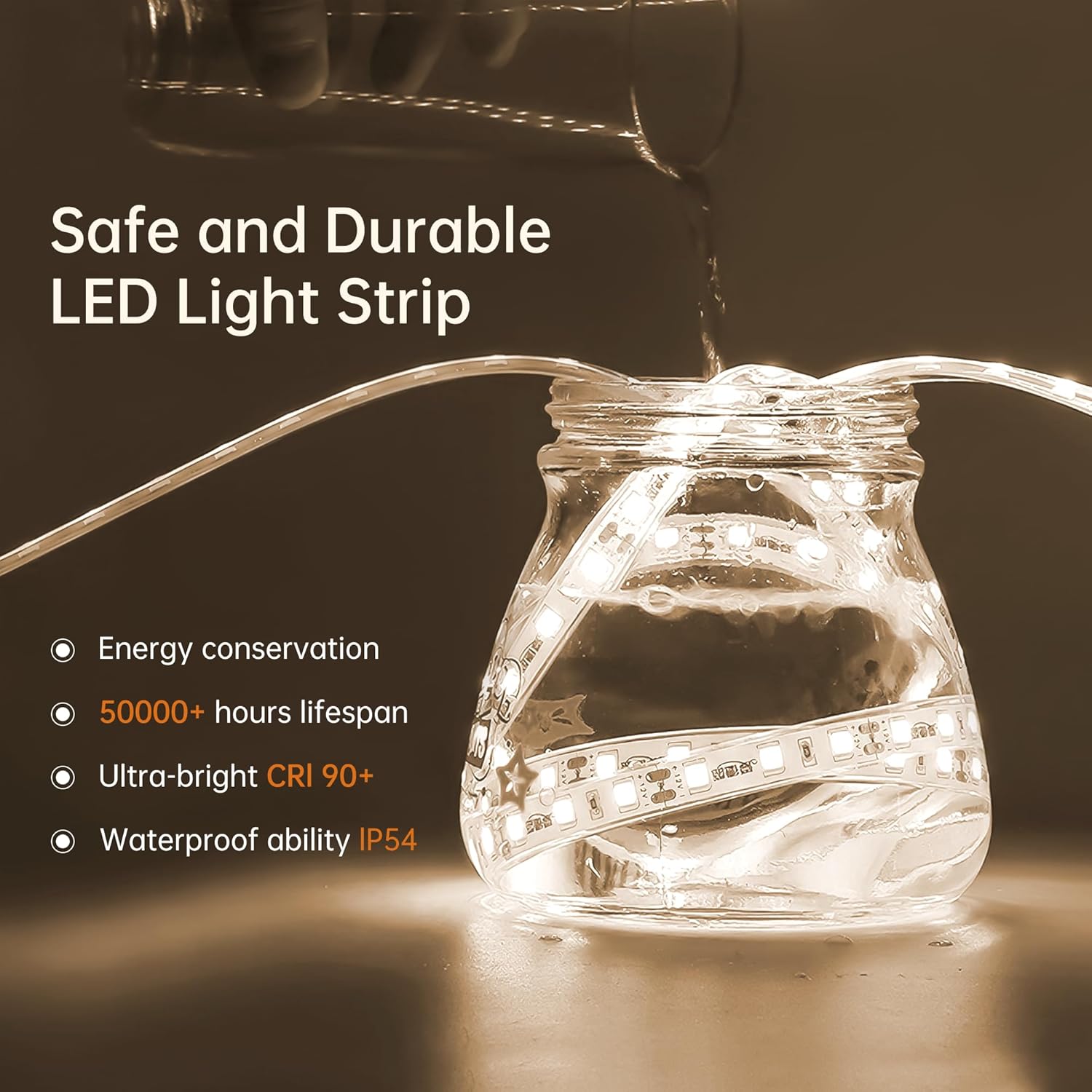

- UL-listed 2835 LEDs (120 pcs / m; 60 warm + 60 cool) output >2 000 lm per metre at only 6 W—50 000 h lifespan, 15 % higher energy efficiency than standard strips.
- Tri-Tone & Stepless Dimming
Touch sensor cycles 3000 K / 4000 K / 6000 K presets or press-and-hold for 10–100 % luminance control; built-in memory recalls last brightness & CCT at next power-on.
- Seamless Rear Edge-Glow Lighting

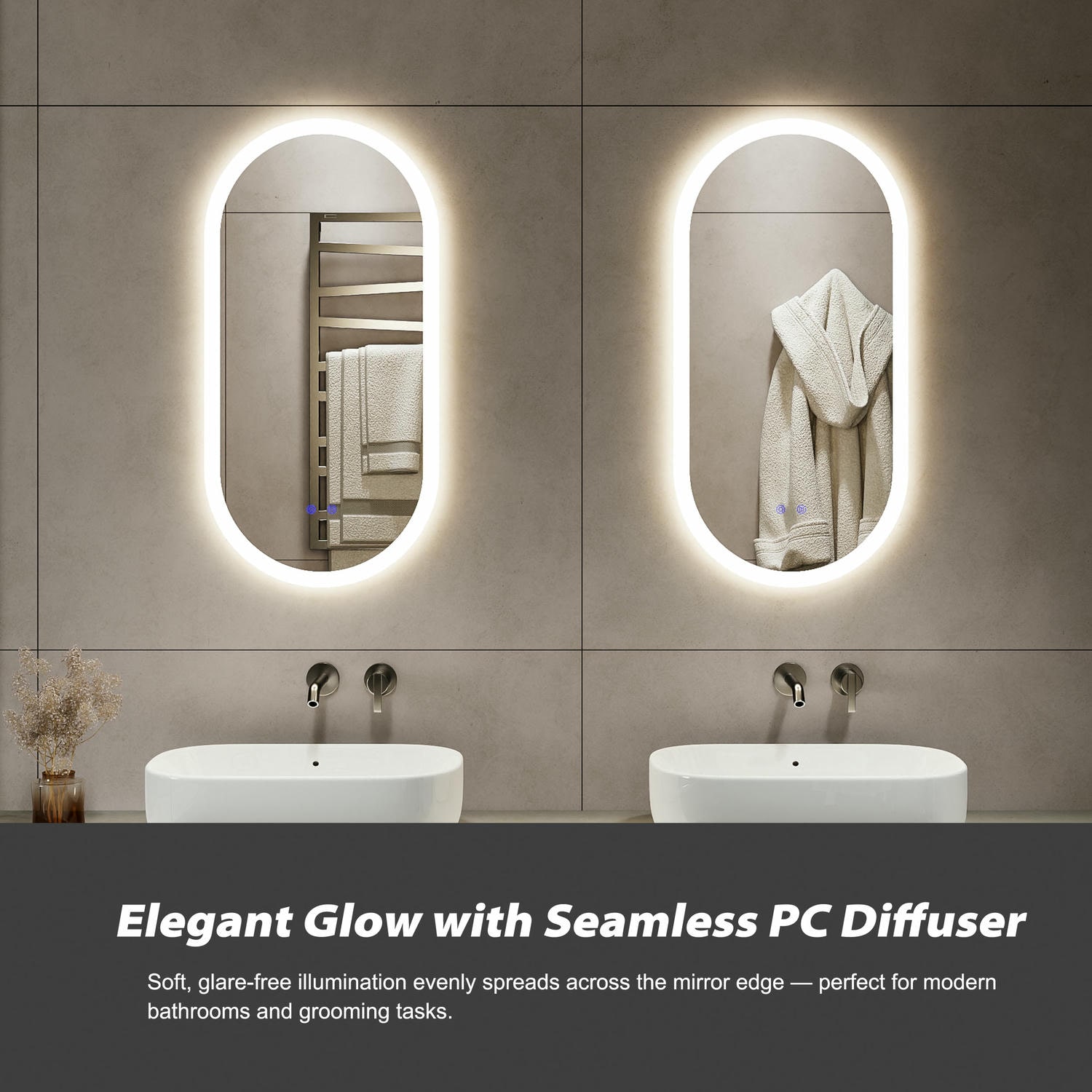

- Frosted PC diffuser wraps the perimeter, creating a soft halo with no visible hotspots—ideal for glare-free makeup, shaving and ambiance lighting.
- Ultra-Clear & Eco-Safe Glass
4 mm copper-free silver mirror delivers ≥92 % reflectivity, RA > 90 color accuracy and passes 480 h CASS corrosion testing—zero lead or formaldehyde for occupant safety.
- Instant Anti-Fog System
A carbon-film heating pad warms the mirror surface to ≈40 °C in 15-20 s, clearing steam after a hot shower. Built-in 60-minute auto shut-off prevents overheating and saves energy.

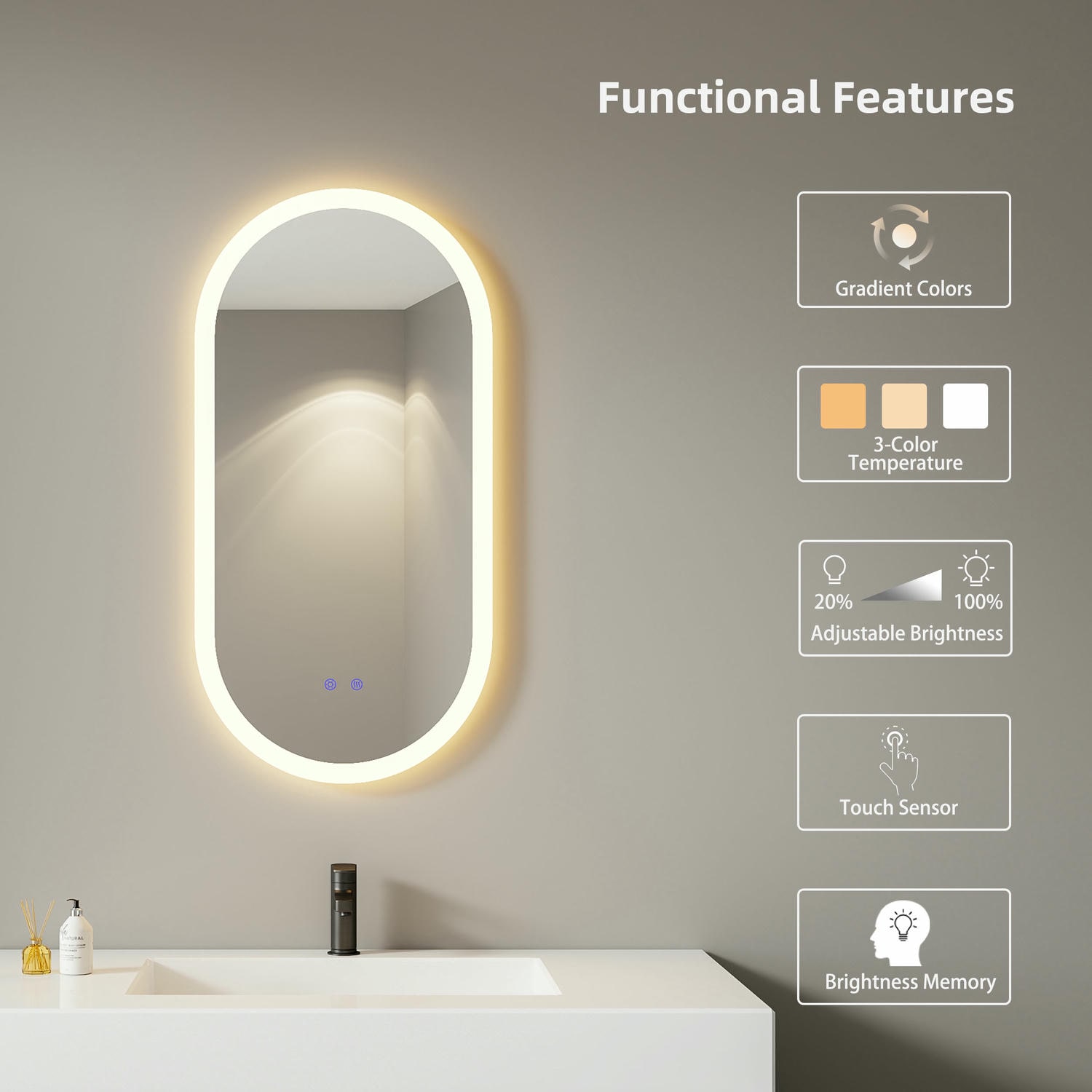

- Multi-Function Capacitive Touch Buttons
• Single Tap: Power ON/OFF | Cycle 3000 K / 4000 K / 6000 K
• Long Press: 0-100 % stepless dimming
• Double Tap: Toggle Anti-Fog independently
The mirror remembers the last brightness and CCT when powered on again.
- Dual Power Installation

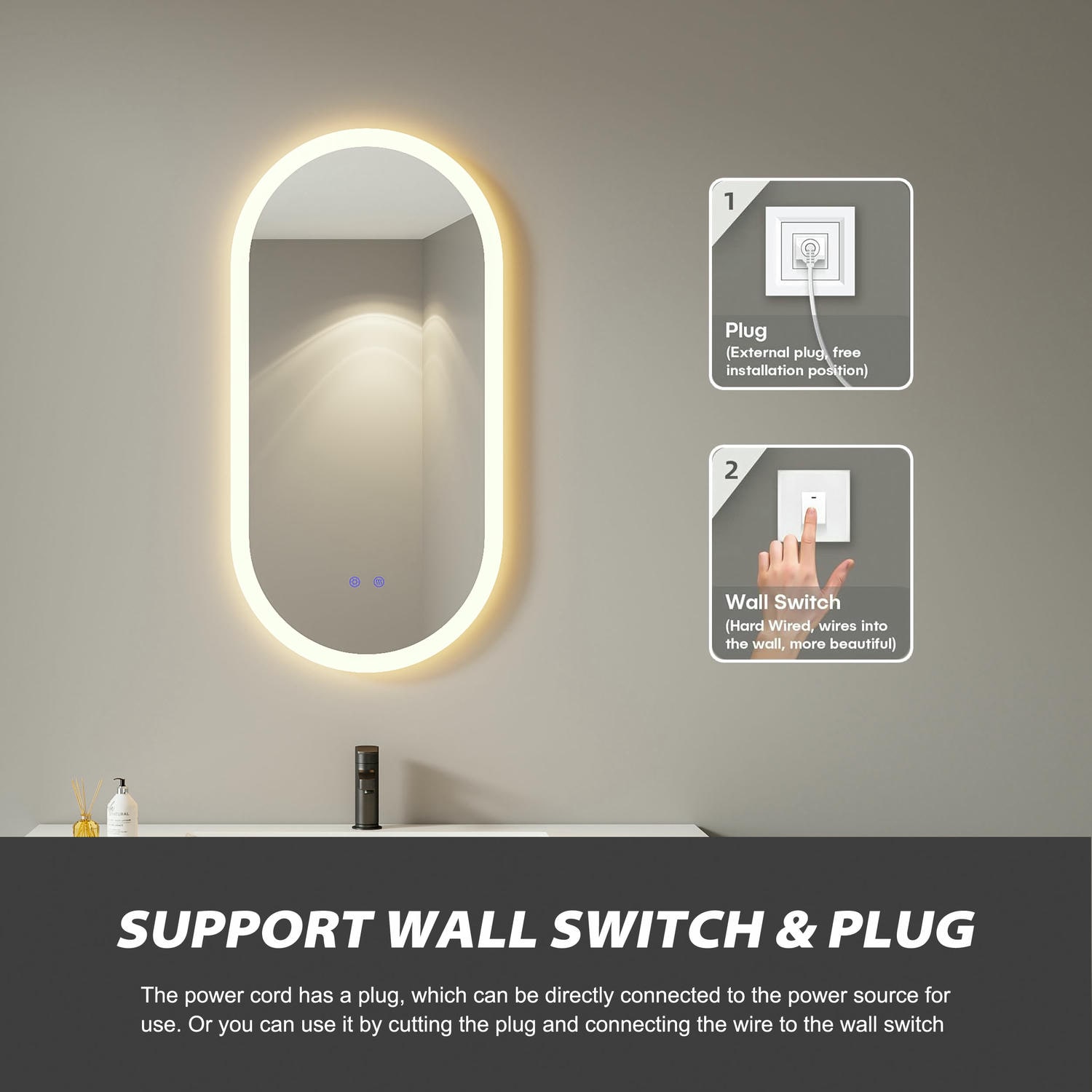

Factory-fitted cord & plug for quick DIY mounting, plus dedicated terminals for hard-wire connection to a wall switch—meets electrician & DIY preferences alike.
📊 Technical Specifications
| Item | Specification |
|---|---|
| Mirror Surface | 4 mm copper-free eco silver glass, straight-edge polished, no sand-blasting |
| Lighting System | Rear edge-glow with seamless PC diffuser |
| LED Strip | 2835 dual-color / 120 LEDs / m / 6 W / m (UL-listed) |
| Color Temperature | 3000 K / 4000 K / 6000 K (adjustable) |
| Dimming & Memory | Stepless touch dimming; auto memory of last setting |
| Frame & Rear Structure | Al HS-9.5×20 frame, 8×8 mm trim, iron power box |
| Mounting | Wall-mounted with V-shaped hanging brackets |
| Standard Sizes | 50 × 80 cm | 45 × 90 cm | 60 × 90 cm (custom ≤180 cm) |
| Power & Wiring | Plug-in 100–240 V or hard-wired to wall switch |
| Ingress / Safety | IP44 / ETL driver (overload, O-T, S-C protection) |
| Certifications | ETL, CE, RoHS, FCC, SAA available on request |
| Customization | Size, CCT, LED length, frame colour, logo, packaging (OEM / ODM) |
